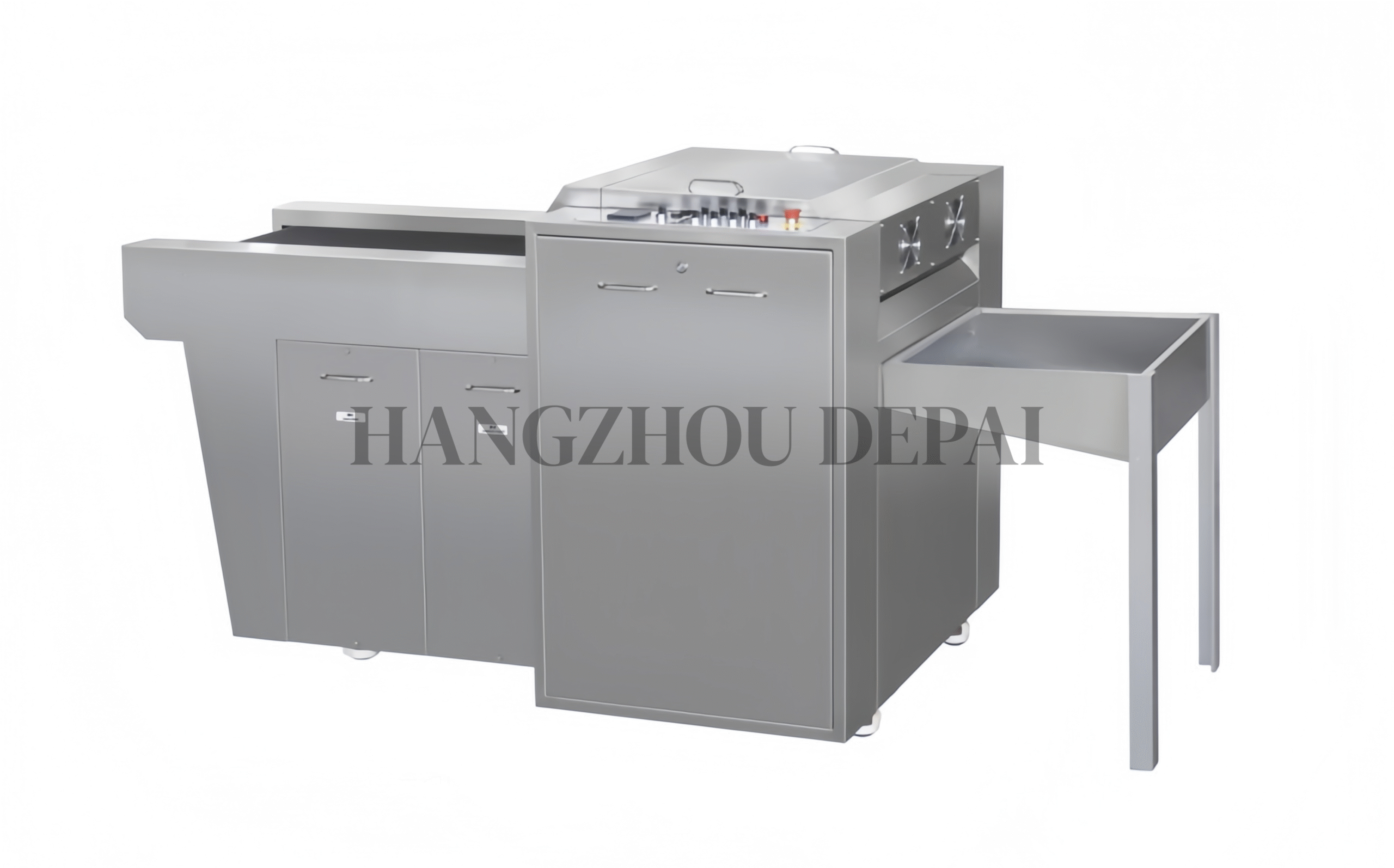

Plate Washing Machine

Plate Washing Machine

The quick and gentle cleaning process is fully automatic and leaves the plates 100% clean and dry within very short time.

Product Details

Printing Plate Washing Cleaning and Drying Machine

Features

1.The quick and gentle cleaning process is fully automatic and leaves the plates 100% clean and dry within very short time.
2.Manual cleaning is easy to damage the printing plate. From a health and safety perspective, this approach is time-consuming and often problematic. The operator’s main energy should be devoted to the printing process and printing preparation.
3.All types of ink are possible, and this machine is designed for environmentally friendly cleaning.
4.The machine is made of stainless steel casing, which is more high-grade and durable.
5.After the printing operation is complete, all the printing plates are placed on the conveyor belt, and the printing plate is automatically brought into the whole cleaning process.
6.The washing and rinsing series provides an automatic two-stage cleaning process. The first stage is liquid cleaning and the second stage is rinsing with water.
7.The liquid is provided with a circulating filtration function.
8.The unique combination of a specially manufactured soft brush and a special cleaning solution ensures an efficient and gentle plate cleaning process.
9.Water will remove the ink residue and cleaning fluid.
10.After hot air drying, the plate can be 100% clean and dry, and can be reused immediately. The whole process only takes a few minutes.

Technical Parameters

Size

DP-XBJ450

DP-XBJ650

DP-XBJ1050

DP-XBJ1350

DP-XBJ-1500

Max plate length(mm)

450

650

1050

1350

1500

Machine Dimension(mm)

2350*1100*1150

3370*1350*1150

3370*1500*1150

3370*1920*1150

5170*2370*1150

Voltage

220v

220v

220v

220V

220V

Power

2.7kw

3.5kw

4.7kw

5.5kw

6.7kw

Weight

370kg

450kg

550kg

630kg

720kg

Product Details

Company Introduction

Hangzhou Depai Machinery Co., Ltd has several production lines in different workshops from printing machines,bag making machine,label sticker die cutting & slitting machines, paper /PP/PLA straw machines,disposable products making machines ,to different plastic&paper and packaging machines.
We have a professional after-sales service team to provide you with high quality service. Engineers who can speak English can come to your factories or workshop to help you debug your machine and provide free training by video call .Our factory also cooperated with some famous French and German companies.Every year, our production director and technical director will go to the European cooperation technology companies or large factories for technical study.By communicating and learning from each other, it ensures the high quality of each machine and our technology is always far ahead in China.

FAQ

1. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.

2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.

3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
